The DL Range offers dynamic load ultrasonic cleaning systems with capacities from 100 to 9000 litres, designed for industrial cleaning, degreasing, stripping, disinfecting, and descaling. Equipped with pneumatic or hydraulic lifting systems (up to 1000 kg and beyond), these machines ensure efficient handling and deep cleaning of complex parts. From 1000L upwards, automatic lid operation is standard, with optional features available across the range including steam extraction, automatic water and detergent dosing, oil removal, filtration, hybrid heating, and hands-free operation. Built with AISI 316 stainless steel for chemical resistance, the DL series enhances cavitation through dynamic movement, reducing cleaning time, chemical use, and operating costs while ensuring thorough cleaning of intricate geometries.
DCM DL Series

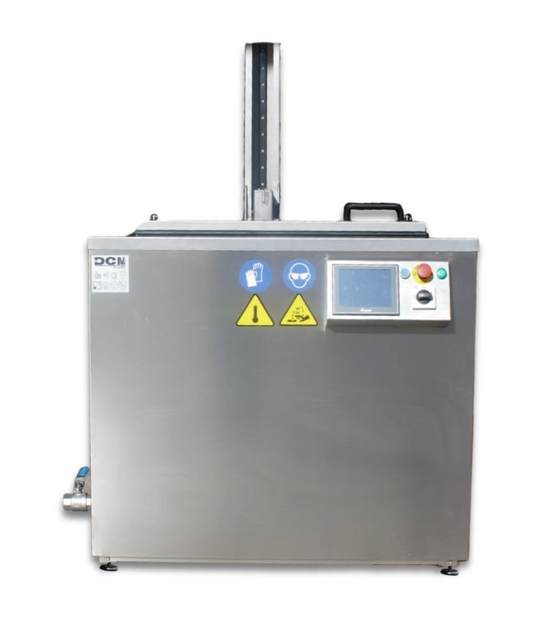

UCM 100DL
The UCM 100DL is a compact, high-efficiency ultrasonic cleaning system designed for low-volume, lightweight parts. It features a pneumatic lift for loads up to 60 kg and supports static loads up to 125 kg. Its integrated oil separation system ensures parts remain clean when removed from the bath. With 1000W ultrasonic power and a 100-liter tank, it delivers an industry-leading 10W/liter efficiency. Built from AISI 304 stainless steel with AISI 316 emitters, it includes a user-friendly graphical interface with remote monitoring capabilities.

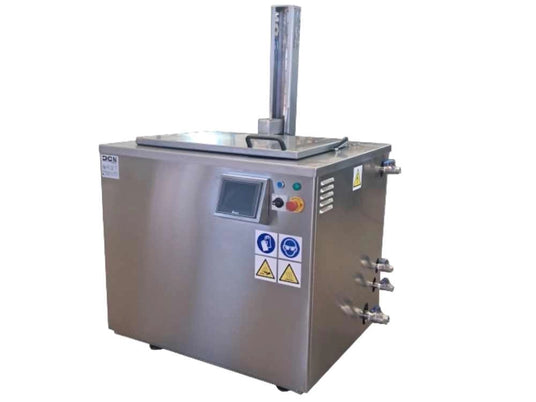

UCM 200DL
The UCM 200DL is a compact yet powerful ultrasonic cleaning system designed for degreasing, decarbonizing, and stripping parts. It features a pneumatic lift for up to 80 kg and supports static loads of 175 kg. Its advanced oil separation system ensures clean part removal, while the auxiliary tank manages displaced water. With a power-to-volume ratio of 8.4W/l and optimized emitter placement, it offers top-tier efficiency. Constructed from AISI 304 stainless steel with AISI 316 emitters, it includes thermal-acoustic insulation to reduce energy use and noise (<78 dB). A 7" color touchscreen provides intuitive, remote-capable control, and its compact design allows wall-adjacent installation.

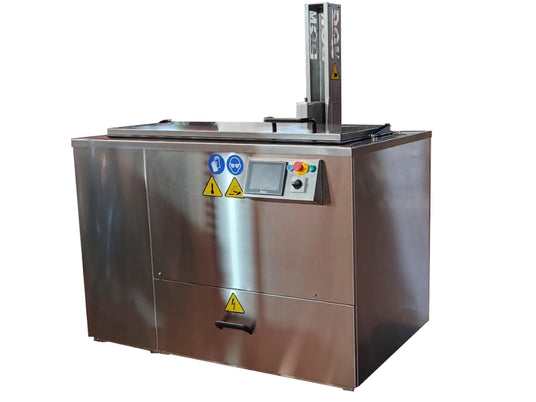

UCM 350DL
The UCM 350DL is a robust ultrasonic cleaning system designed for demanding tasks such as carbon removal, paint stripping, and degreasing. It features a pneumatic lift with a 275 kg capacity and dynamic motion to enhance cleaning in hard-to-reach cavities. Supporting static loads up to 550 kg, it includes a compact, wall-adjacent design with a removable electrical panel. Its oil separation system ensures clean part removal, while the synchronized digital generator delivers powerful cavitation. Thermal and acoustic insulation reduces energy use and noise (<78 dB), making it efficient, safe, and ideal for industrial environments.

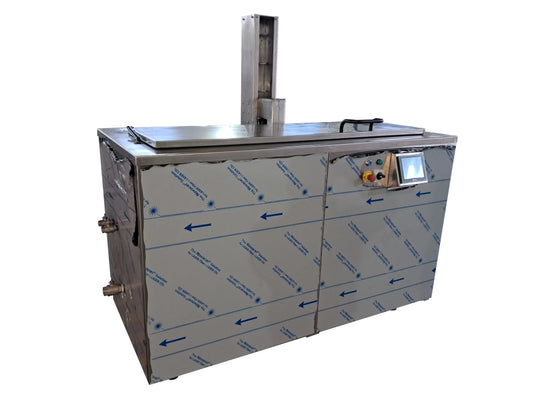

UCM 500DL
The UCM 500DL is a compact ultrasonic cleaning system ideal for automotive workshops, especially for cleaning cylinder heads and engine blocks up to 2,000cc. It features a pneumatic lift with a dynamic capacity of 275 kg and supports static loads up to 550 kg. Its removable electrical panel allows corner installation, saving space. The double-layer insulation ensures minimal energy use and reduced carbon footprint. Equipped with an oil separator (optional automatic), synchronized digital ultrasound generators, and an integrated status beacon, it also offers Ethernet connectivity for remote monitoring and control.

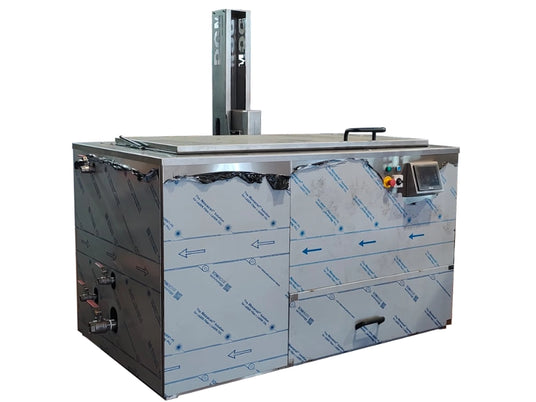

UCM 750DL
The UCM 750DL is a high-capacity ultrasonic cleaning system built for industrial use, featuring a pneumatic lift with a dynamic load capacity of 1500 kg and static support up to 3000 kg. Its 790-liter tank delivers 6000W of ultrasonic power and 11,250W of heating, ensuring deep and efficient cleaning. Constructed from AISI 304 stainless steel with AISI 316L emitters, it includes oil separation, thermal-acoustic insulation, and a 7" multilingual HMI touchscreen. Compact and space-saving, it also offers remote monitoring, programmable beacon lights, and optional noise reduction below 78 dB.

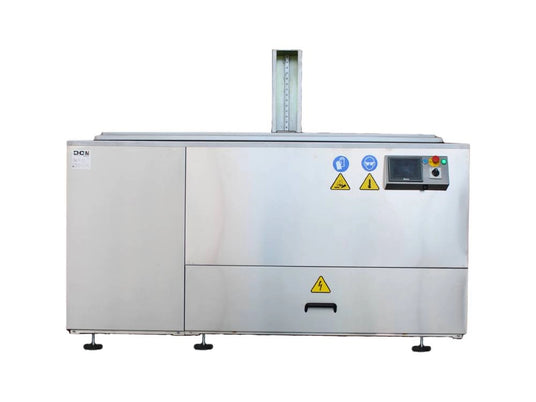

UCM 1000DL
The UCM 1000DL is a powerful ultrasonic cleaning system designed for large industrial components. With a 1215-liter tank, 8000W ultrasonic power, and 15,000W heating capacity, it ensures deep and efficient cleaning. Its pneumatic lift handles dynamic loads up to 825 kg and static loads up to 1650 kg, with optional hydraulic support for heavier items. Built from AISI 304 stainless steel and equipped with AISI 316L emitters, it features oil separation, thermal-acoustic insulation, and a 7" multilingual HMI touchscreen. Additional highlights include a removable electrical panel, IP67-rated controls, programmable beacon lights, and optional noise reduction below 78 dB. Ideal for high-demand industrial environments.

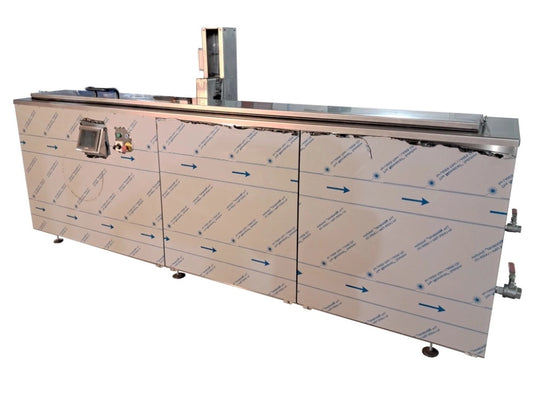

UCM 1000DL LONG
The UCM 1000DL LONG is a specialized ultrasonic cleaning system designed for long industrial parts. With a 1050-liter tank, 8000W ultrasonic power, and 15,000W heating capacity, it delivers high-performance cleaning for heavy-duty applications. Its robust pneumatic lift supports dynamic loads up to 890 kg and static loads up to 1050 kg. The system features double-layer thermal and acoustic insulation, reducing energy consumption and noise emissions below 78 dB. Built from AISI 304 stainless steel with AISI 316L emitters, it includes a removable electrical panel, oil separation system, 130L auxiliary tank, and a 7" multilingual HMI touchscreen. Ideal for space-saving installations, it offers advanced control, remote monitoring, and automatic lid operation.

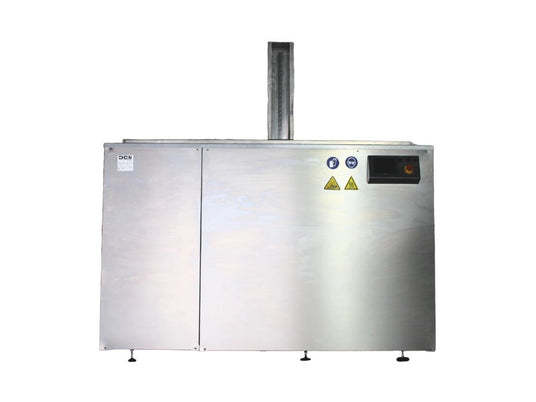

UCM 2000DL
The UCM 2000DL is a heavy-duty ultrasonic cleaning system engineered for large industrial components and high-load applications. With a 2380-liter tank, 10,000W ultrasonic power, and 22,500W heating capacity, it ensures deep and efficient cleaning. Its pneumatic lift supports dynamic loads up to 1500 kg and static loads up to 3000 kg, with hydraulic support for heavier operations. Built from AISI 304 stainless steel and equipped with AISI 316L emitters, it features oil separation, a 310L auxiliary tank, and double-layer thermal-acoustic insulation to reduce energy use and noise below 78 dB. The system includes a 7" multilingual HMI touchscreen, remote monitoring via RS485 Modbus, and a removable electrical panel for space-saving installation.

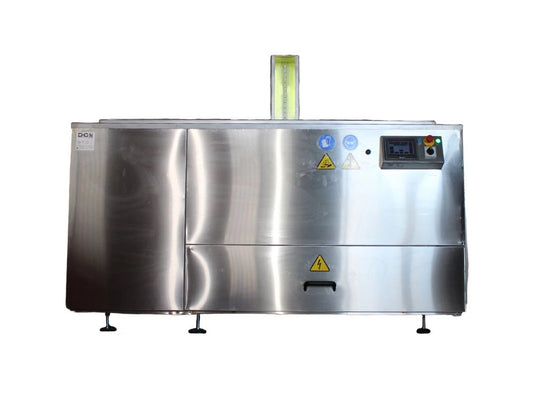

UCM 3000DL
The UCM 3000DL is a high-capacity ultrasonic cleaning system engineered for large and heavy industrial parts. With a 3105-liter tank, 14,000W ultrasonic power, and 27,000W heating capacity, it delivers exceptional cleaning performance. Its pneumatic lift supports dynamic loads up to 1500 kg and static loads up to 3000 kg, with hydraulic support for heavier applications. Built from AISI 304 stainless steel with AISI 316L emitters, it features a 403L auxiliary tank for oil separation, double-layer thermal and acoustic insulation, and a 7" multilingual HMI touchscreen. Additional features include a removable electrical cabinet, IP67-rated controls, programmable beacon lights, and optional noise reduction below 78 dB.
